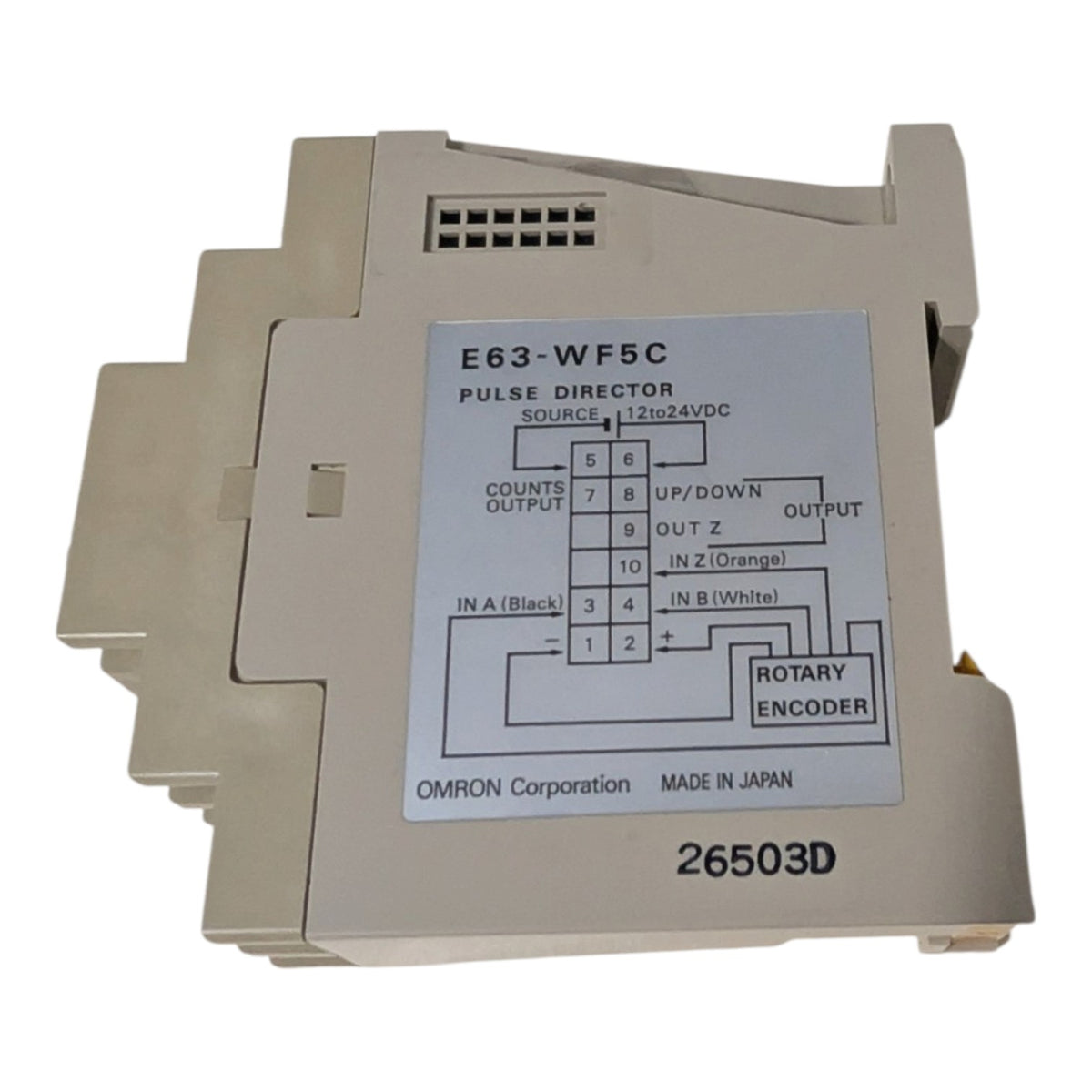

Omron E63-WF5C pulse director (direction discrimination unit) that reads the A/B phase signals from a rotary encoder and outputs count and up/down direction signals.

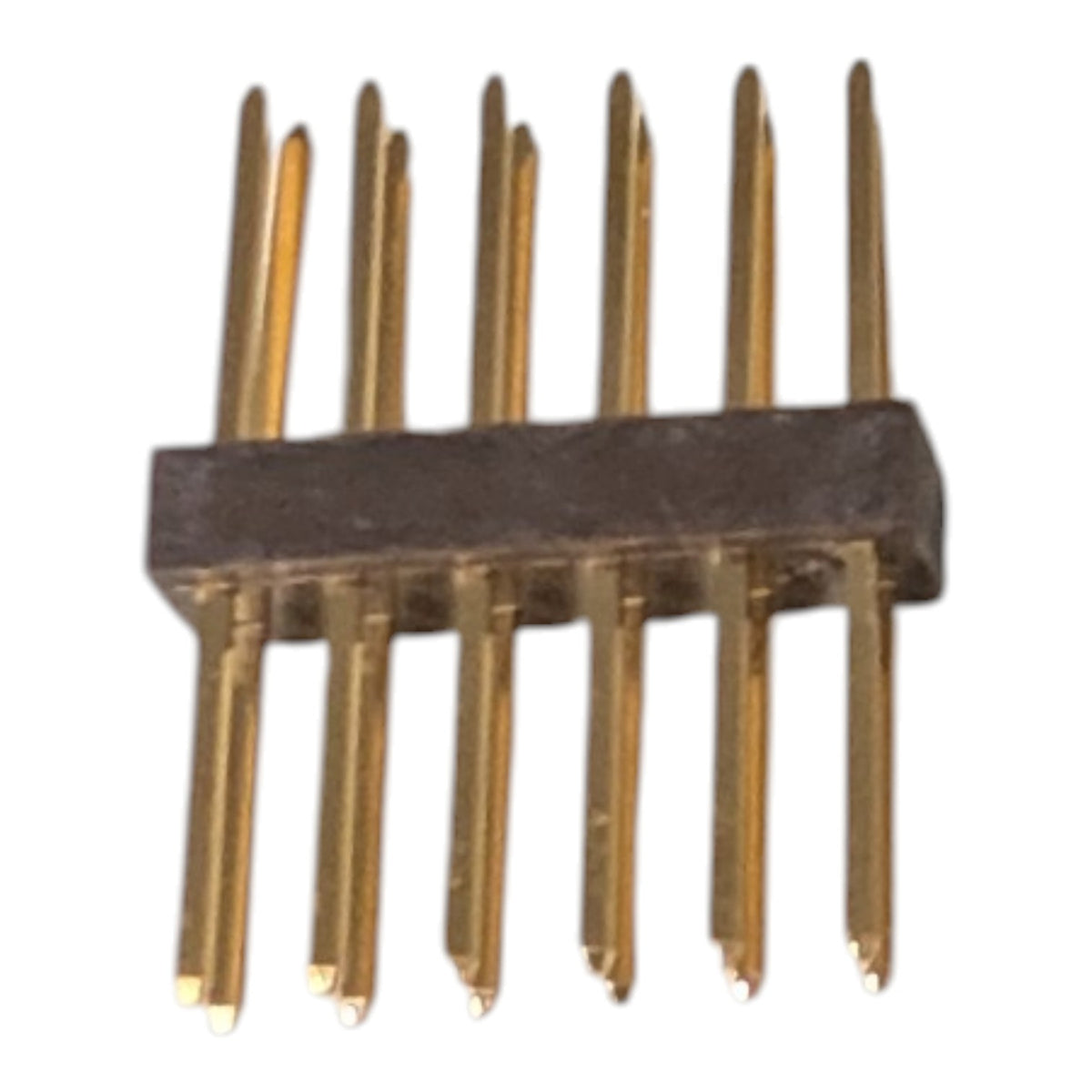

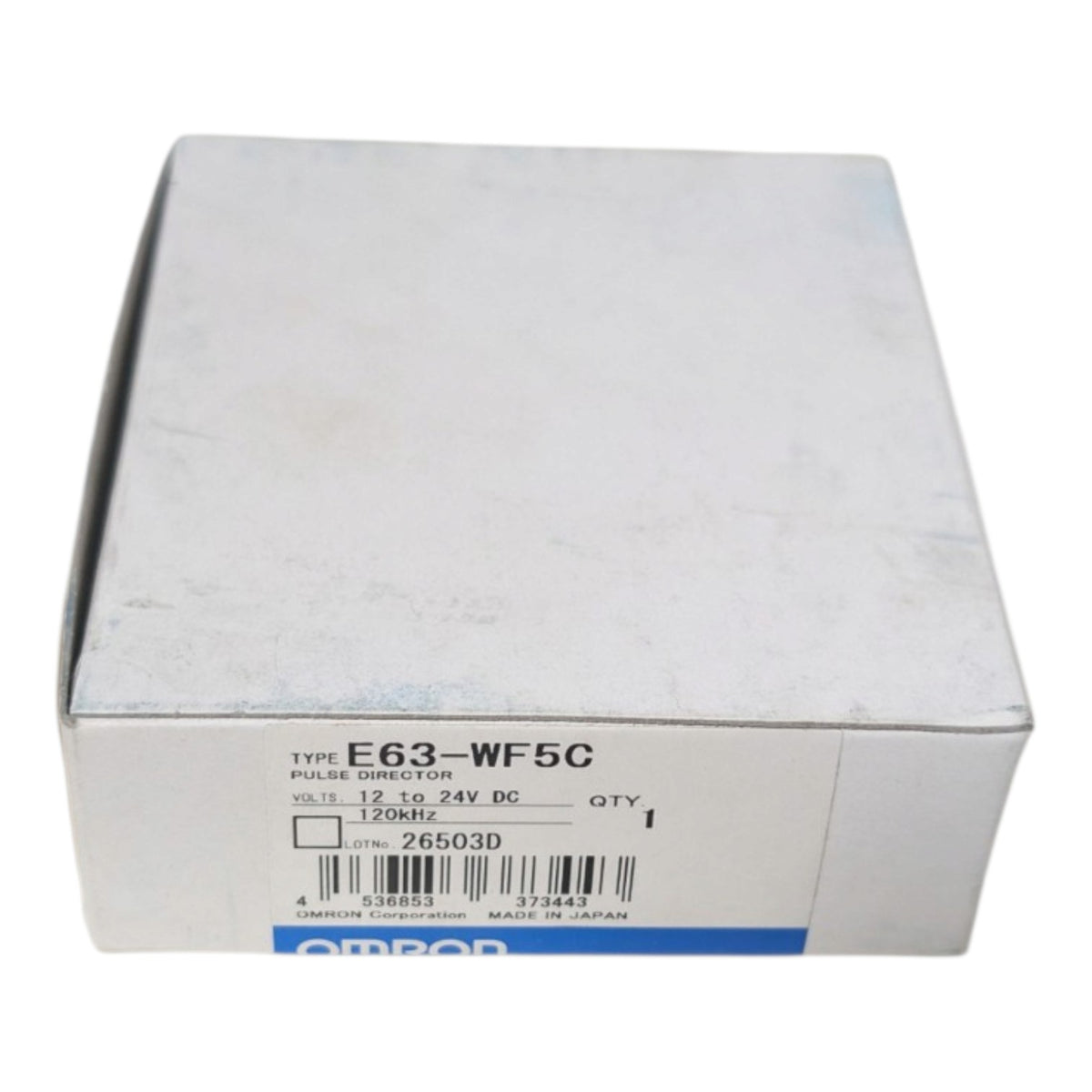

Condition: New Brand: Omron Model: E63-WF5C Included: Pulse director, original box, pin connector
Technical Specifications:
Power: 12-24 V DC, 50 mA max
Max response frequency: 120 kHz
Inputs: encoder phases A, B and Z
Outputs: UP/DOWN, COUNTS and OUT Z, open collector (30 V DC, 80 mA max)

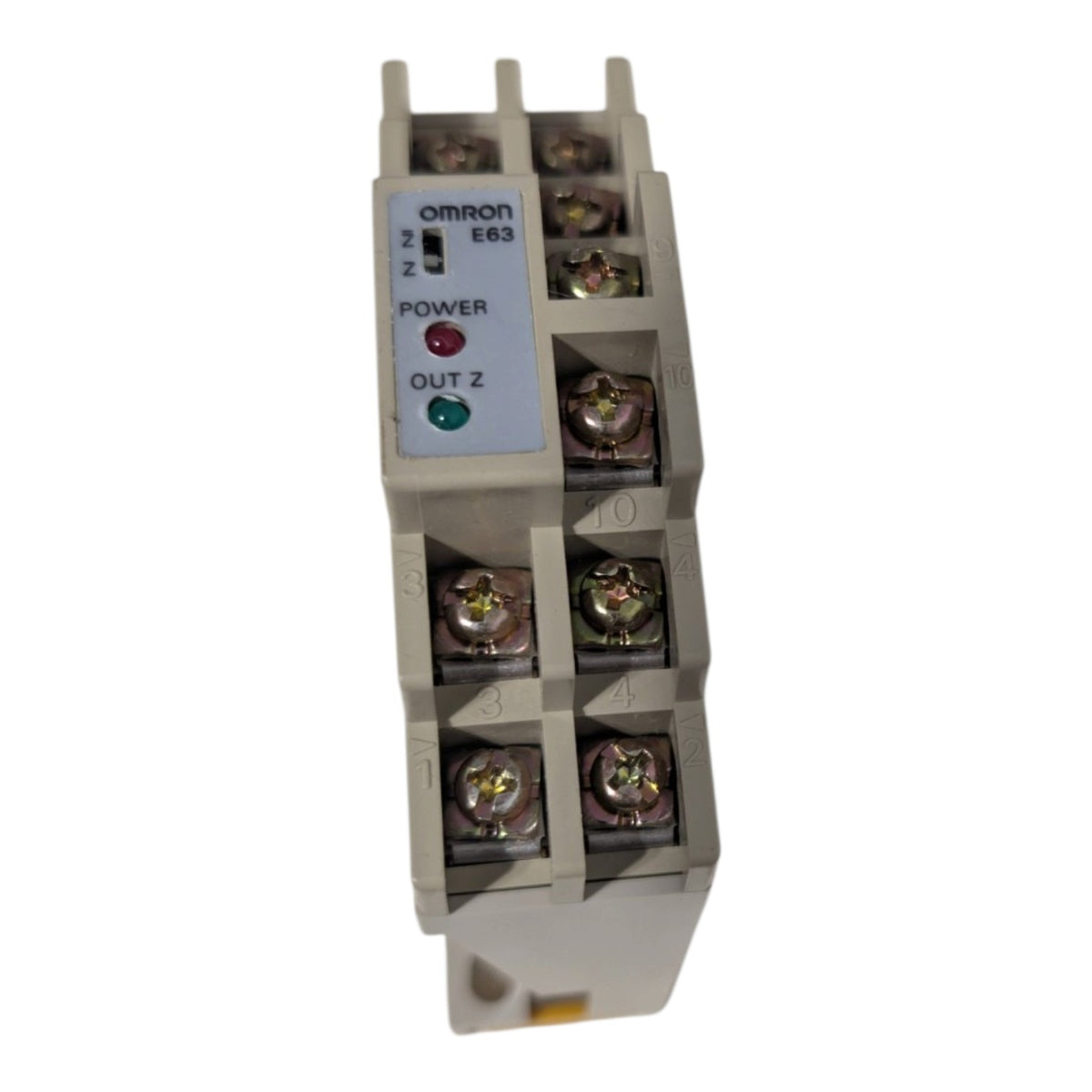

Connection: screw terminal block
Indicators: power LED (red), Z output LED (green)

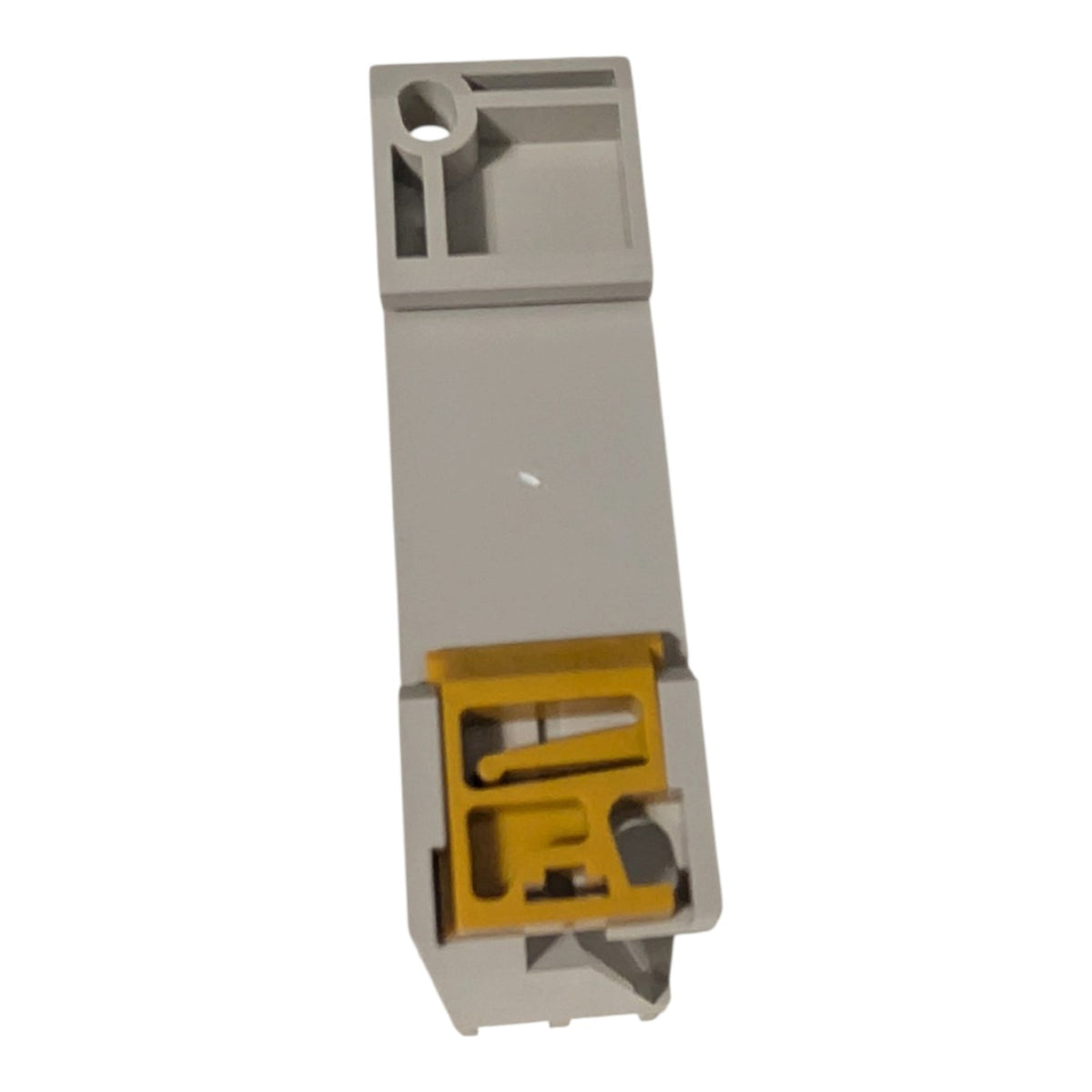

Mounting: DIN rail
Features:
Front switch reverses phase Z logic
Works with open-collector or voltage-output encoders
