Beckhoff EL9540 EtherCAT Surge Filter Terminal, 24 V DC (Used)

Beckhoff EL9540 EtherCAT surge filter terminal for the 24 V DC field supply, rated up to 10 A.

Condition: Used
Brand: Beckhoff
Part Number: EL9540
Included: One surge filter terminal

Technical Specifications:

• Function: surge filter for the field supply
• Nominal voltage: 24 V DC (-15% / +20%)
• Current: up to 10 A on the field supply
• Isolation: 500 V (E-bus to field voltage)
• Size: 15 x 100 x 70 mm
• Protection: IP20
• Operating temperature: -25 to +60 °C

Features:

• No address or configuration settings required
• Does not filter the system supply, only the field supply
• Made in Germany (as marked on the label)

References:

• Beckhoff EL9540 product page

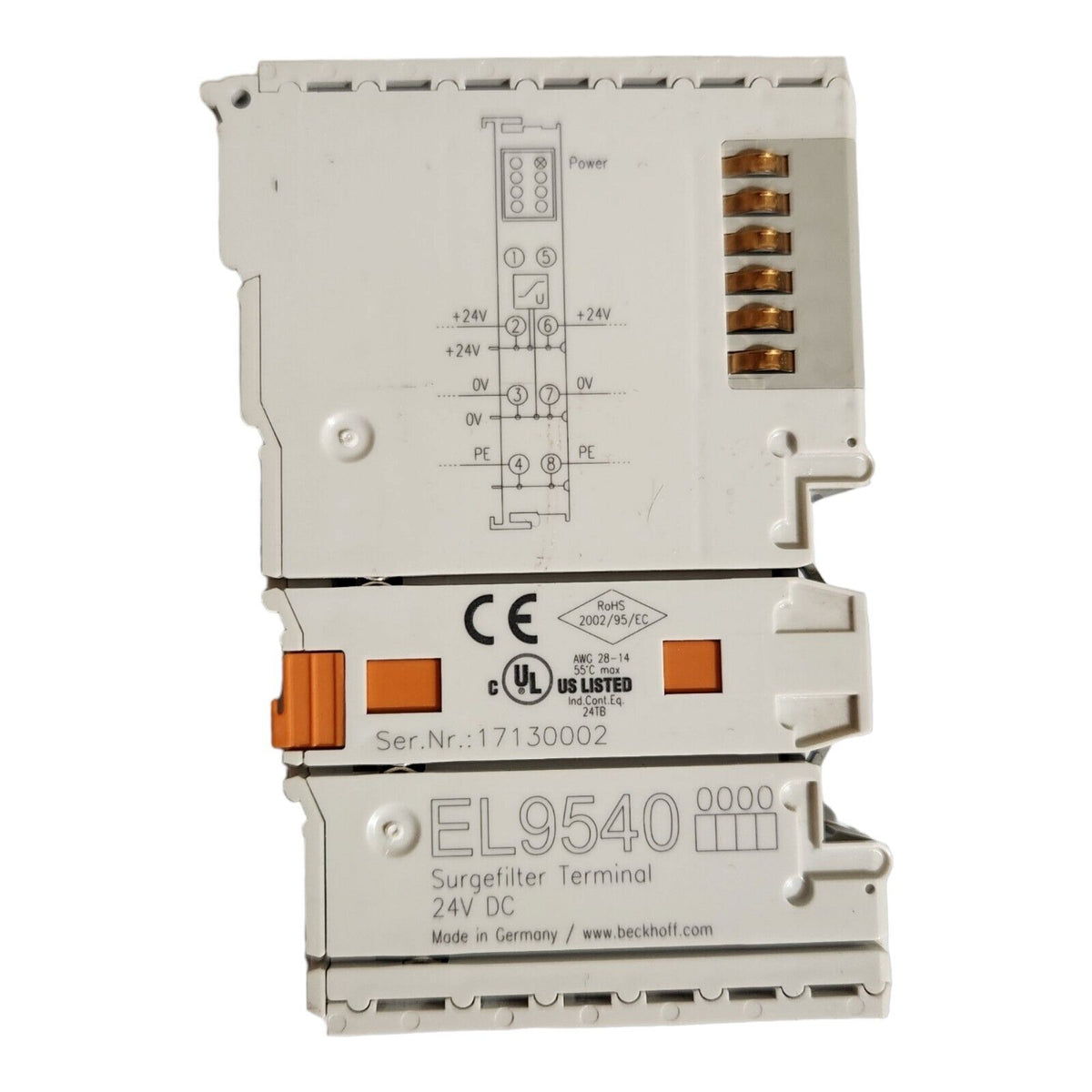

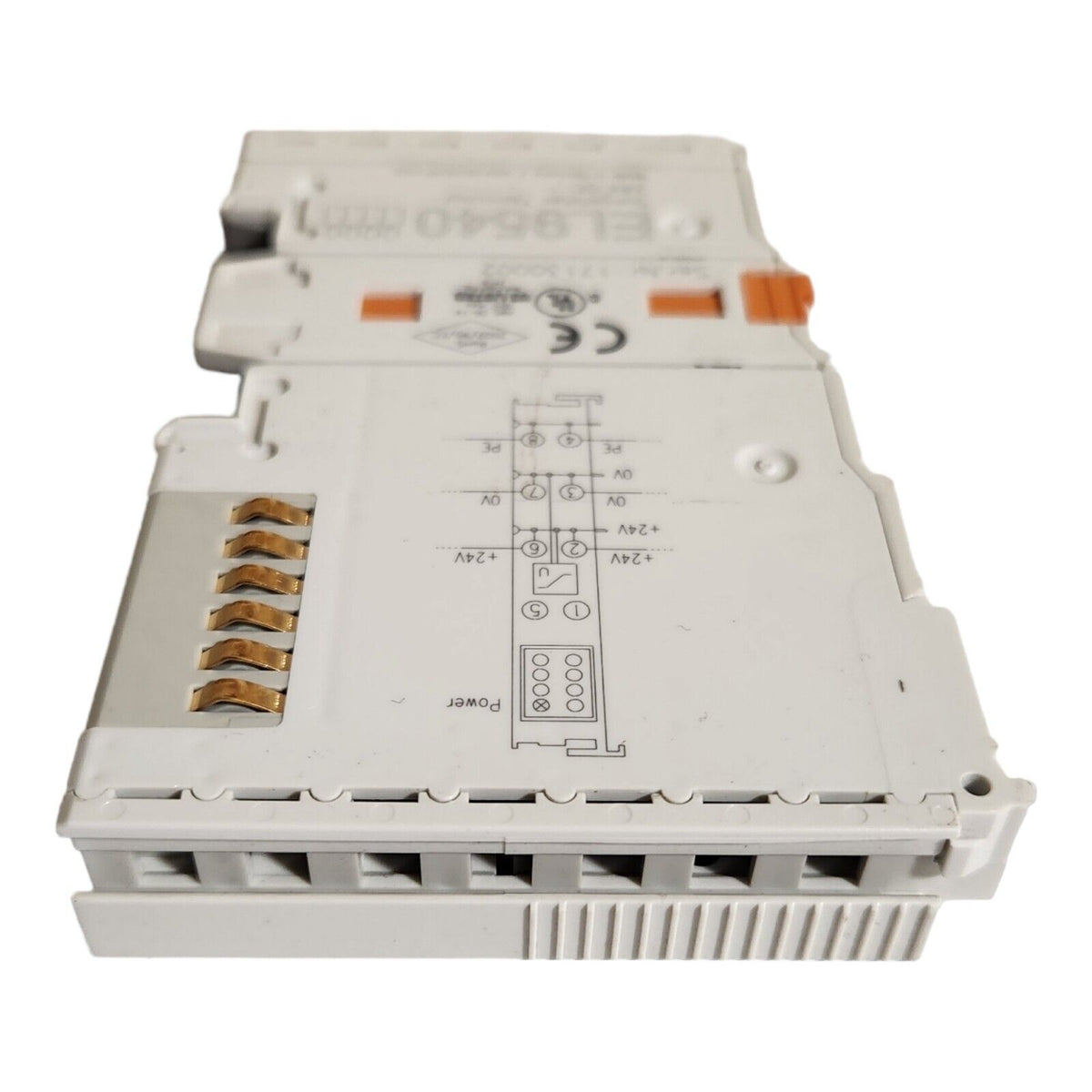

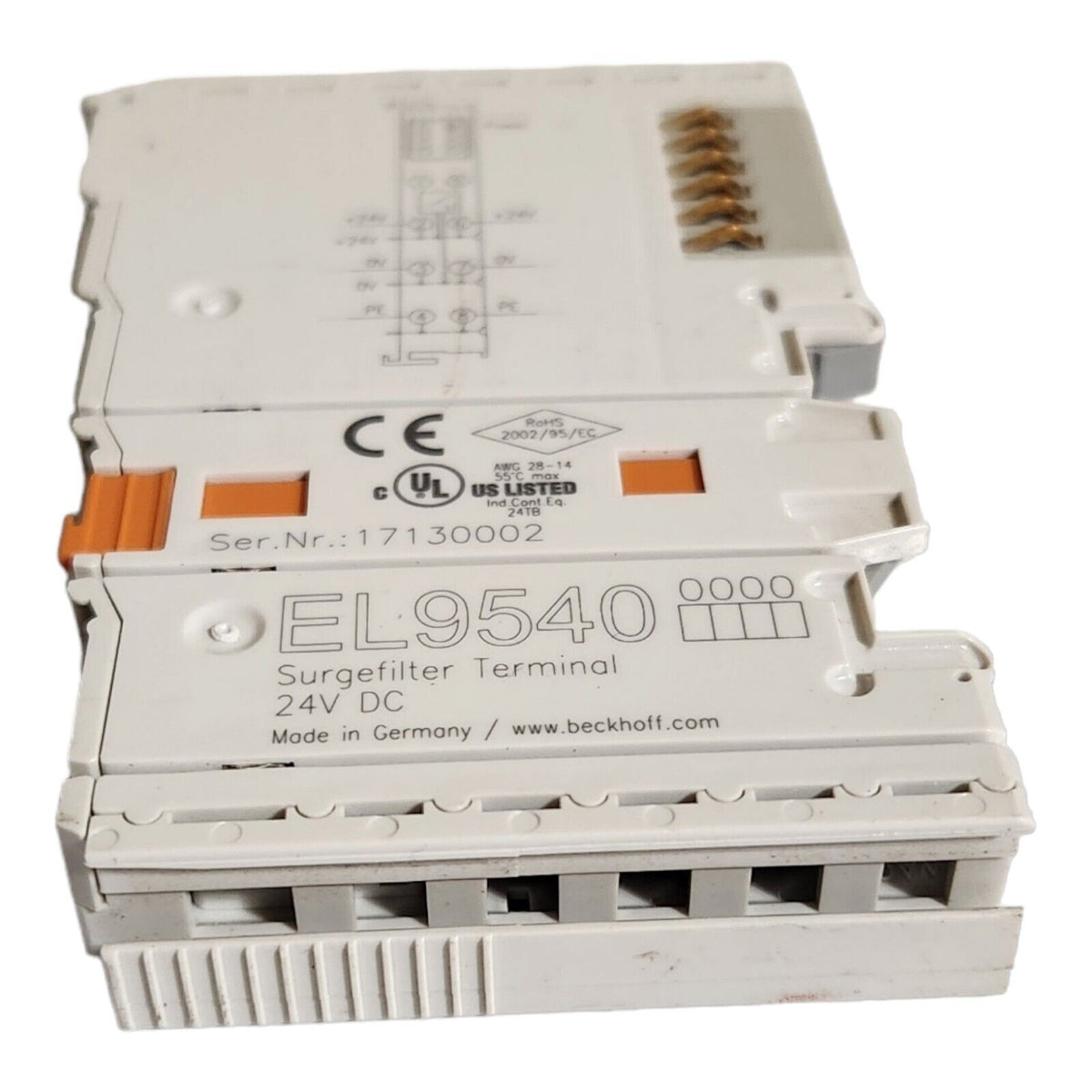

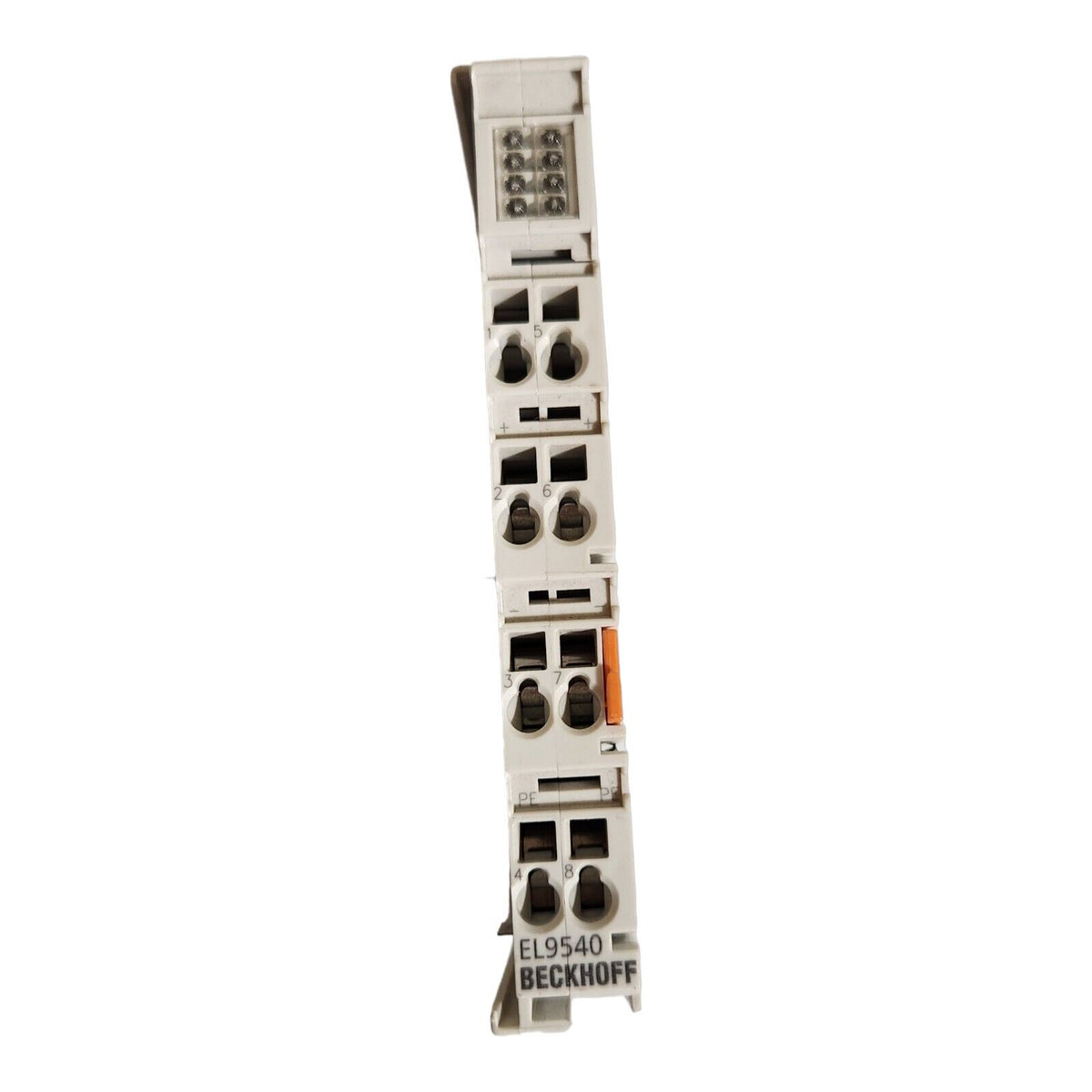

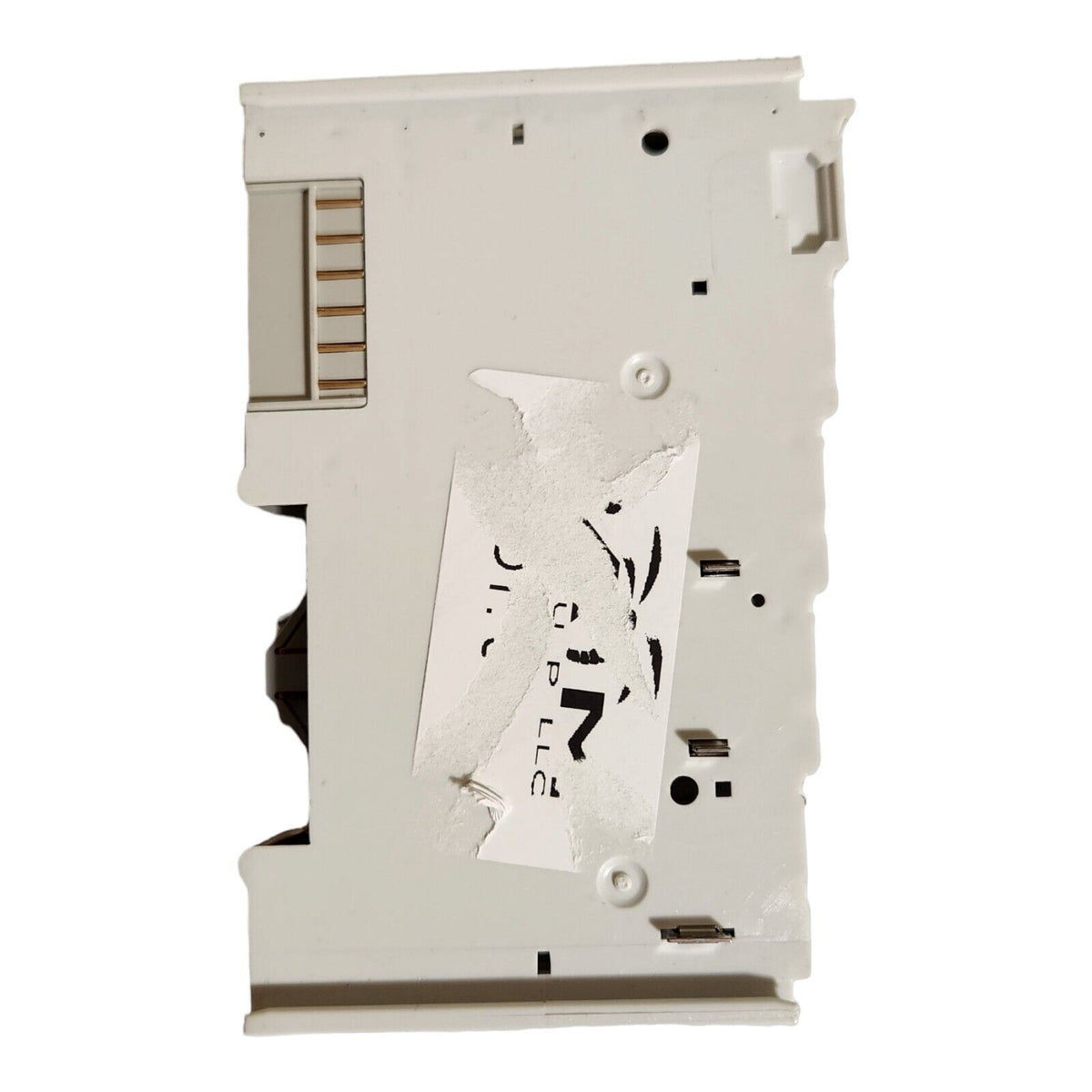

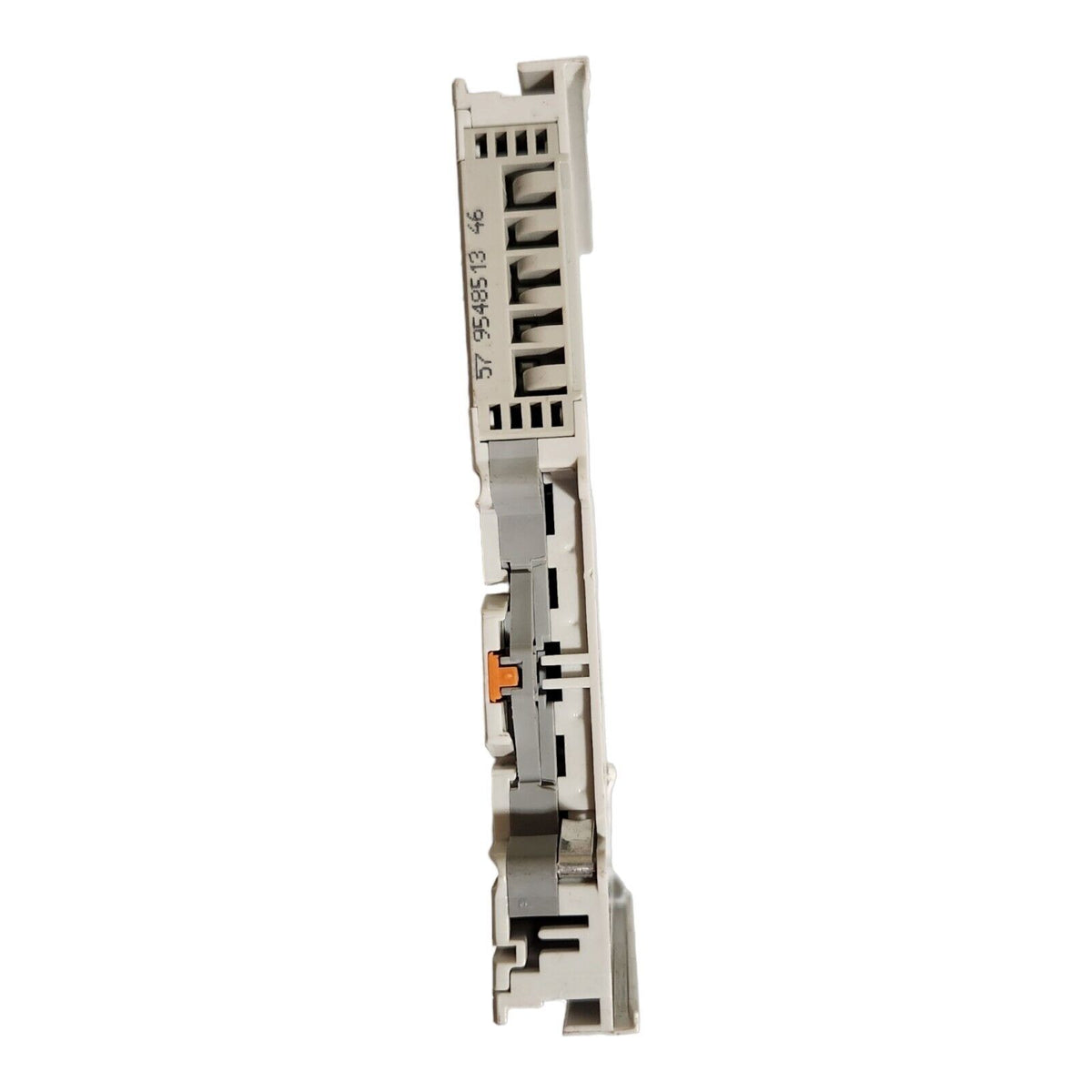

Units may show light sticker residue from previous use. Sold individually as pictured.

Multiples of this item are available. The one you receive may be in better or worse condition than the one pictured. Feel free to contact us before purchase for updated or actual photos.

Technical specifications and features are provided for convenience. Please double-check them against the photos and the manufacturer's information before purchase.
